SMT锡膏印刷机工艺知识:

锡膏印刷机是将锡膏印刷到PCB板上的设备，它是对工艺和质量影响最大的设备。目前，印刷机主要分半自动印刷机和全自动印刷机。

半自动锡膏印刷机：操作简单，印刷速度快，结构简单，缺点是印刷工艺参数可控点较少，印刷对中精度不高，锡膏脱模差，一般适用于0603（英制）以上元件、引脚间距大于1.27mm 的PCB印刷工艺。

全自动锡膏印刷机：印刷对中精度高，锡膏脱模效果好，印刷工艺较稳定，适用密间距元件的印刷，缺点是维护成本高，对作业员的知识水平要求较高。

CCJ高精度全自动视觉印刷机技术特征

CCJ高精度全自动视觉印刷机产品规格书:

1， 高精度全自动视觉印刷机功能概述：

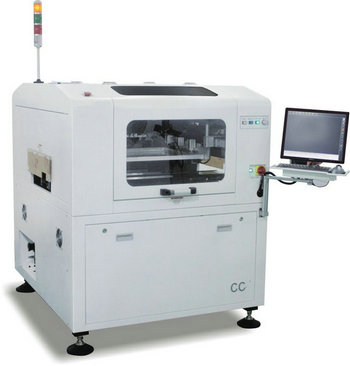

CCJ是一款高精度全自动锡膏印刷机(High Precision Automatic Solder Paste Printer/ Stencil Printer)。在表面组装工艺生产(SMT)中，用于高精度的钢网印刷或漏版印刷的专用生产设备。

产品说明：
CCJ Series High Precision Automatic Solder Paste Printer designed for high precision steel mesh printing or stencil printing in SMT industry.

Printing PCB size：50mm x 50mm ~400mm x 340mm;
PCB thickness: 0.6mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 01005, 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging, min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products.

Specification

*The following data is measured under environment temperature of 25 ℃ and humidity of 60%.

            Item
 　
                 Parameter

Repeat Position Accuracy
 ±0.01mm(Test data and method are available)

Printing Accuracy　
 ±0.025mm(Test data and method are available)

Printing Speed / Cycle Time
 <9s (Exclude Printing & Cleaning)

Products Changeover
 <5Min

Screen Stencil Size/Min
 470mm X 370mm

Screen Stencil Size/Max
 737mm X 737mm

Screen Stencil Size/Thickness
 20mm ~ 40mm

PCB Size/Min
 50X50mm

PCB Size/Max
 400X340mm

PCB Thickness
 0.6~6mm

PCB Warpage Ratio
 ＜1%（Based on diagonal length）

Bottom of Board Size　
 13mm（Standard configuration）, 25mm

Edge of Board Size
 3mm

Conveyor Height
 900±40mm

Conveyor Direction
 Left-Right; Right-Left; Left-Left; Right-Right

Conveyor Speed
 100-1500mm/sec Programmable control

Board Positioning
 Support System
 Magnetic pin/Side support block/Flexible automatic pin（optional）

Clamping System
 Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tabletting

Print head
 Closed-loop pressure feedback, programmable pressure control

Squeegee Speed
 10~200mm/sec

Squeegee Pressure
 0-15kg software control（closed-loop pressure feedback）, pressure ＆#118alue visible

Squeegee Angle
 60°(Standard )/55°/45°

Squeegee Type
 Steel squeegee (standard), rubber squeegee, and other types

of squeegee shall be customized.

Steel Mesh Separation Speed
 0.01~10mm/sec Programmable Control

Cleaning Method
 Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods）

Table Adjustment Range
 X: ±4mm;Y:±6mm;θ:±2°

Type of Fiducial Point　
 Standard geometry shape of fiducial point, bonding pad / Stencil hole

Camera System
 Single digital camera for upward/downward vision system

Air Pressure
 4~6Kg/cm2

Air Consumption　
 Approx 0.07m3 /min

Control Method
 PC Control

Power Supply
 AC:220±10%,50/60HZ 1Φ 1.5KW

Machine Dimensions
 1450mm(L) x 1250mm(W) x 1540(H)mm(Exclude the height of lighthouse, please see

Dimension of Product)

Weight
 Approx:1100Kg

Operation Temperature
 -20°C ~ +45°C

Operation Humidity
 30%~60%


High Precision Automatic Solder Paste Printer  Product锡膏印刷范围：

(1), SMT工艺的电阻，电容，电感，二极管，三极管等贴片元器件生产加工：01005, 0201, 0402, 0603, 0805, 1206等以及其他规格尺寸；

(2), IC: 支持SOP, TSOP, TSSOP, QFN 等封装，最小间距(Pitch) 0.3mm;支持 BGA, CSP封装，最小球径(Ball) 0.2mm;

(3),印刷尺寸：50mm x 50mm ~400mm x 340mm;

(4), PCB规格：厚度0.6mm ~ 6mm

(5), FPC规格：厚度0.6mm ~ 6mm（0.6mm以下需带治具）

High Precision Automatic Solder Paste Printer应用范围:

智能手机，通讯，液晶电视，网络机顶盒，家庭影院，车载电子，医疗电力设备，航天航空 等产品/设备的生产制造, 和一般电子产品的生产加工。
